Graco
Reactor Heated Whip Hose
Length
Interior Diameter
Pressure Rating
Reactor Heated Whip Hose
3' / 1/4" / 2000 PSI
Calgary
4450 50 Avenue Southeast
Calgary AB T2B 3R4
Canada
Vancouver
68 Schooner Street
Unit #4
Coquitlam BC V3B 7B1
Canada
Edmonton
9360 49 Street Northwest
Edmonton AB T6B 2L7
Canada
Toronto
902 Dillingham Road
Pickering ON L1W 1Z6
Canada

5000
Max Pressure (psi)

20
Max Length (ft)

0.375
Max Diameter (in)

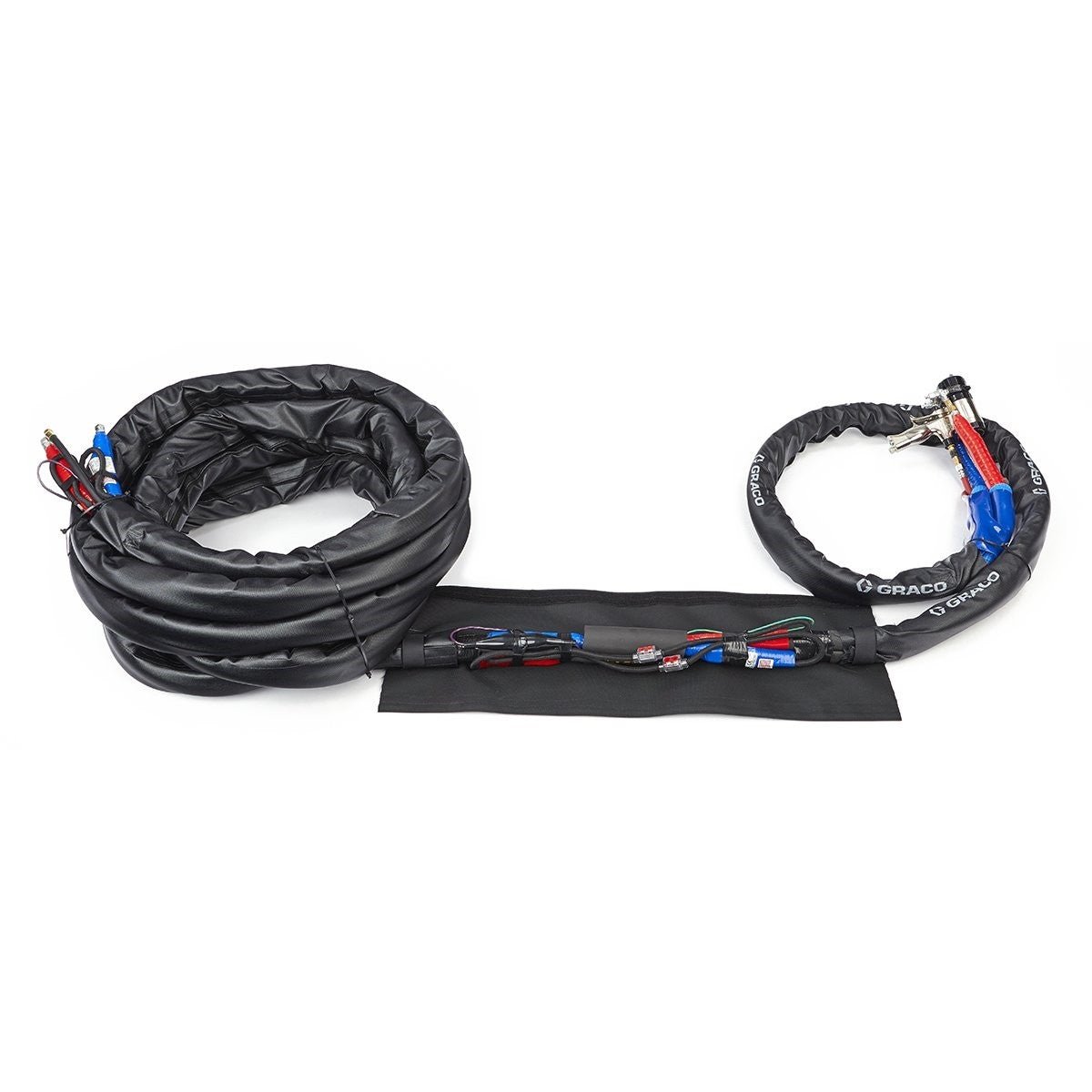

The Graco heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
For Reactor proportioners
New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses

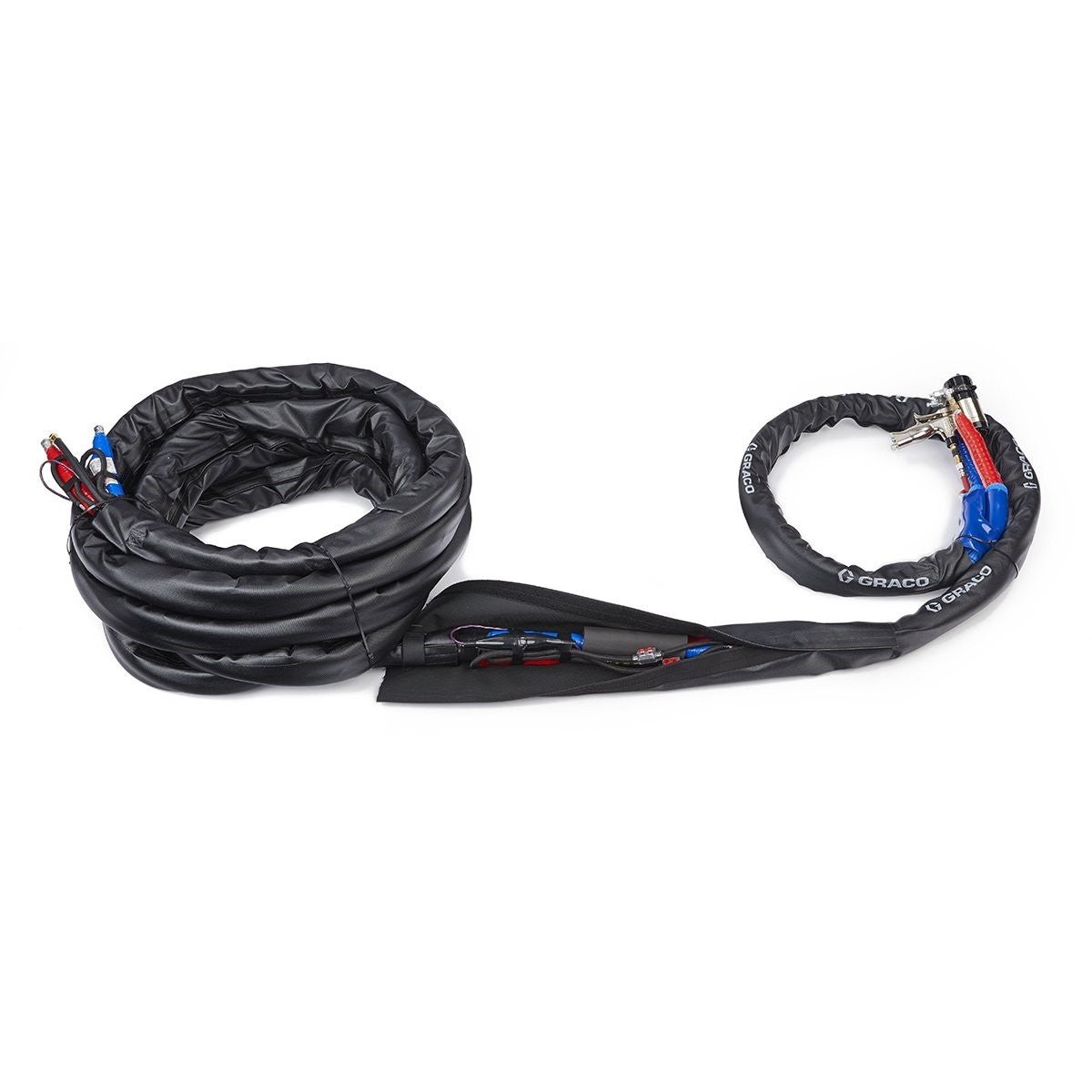

New Xtreme-Wrap Scuff Guard
- Form fitting to the hose, no more baggy excess material
- Made from urethane coated ballistic nylon for puncture and tear resistance, abrasion protection, and oil and water resistance
- Sheds surface moisture and won't absorb water to weigh down the hose bundle; will not freeze solid in cold temperatures
- Hook and Loop enclosure used on the entire length of the hose for easy access to the hoses, fittings, and fluid temperature sensors
- Copper-heated hoses are designed specifically for use with Graco proportioners
- Hoses are covered with foam insulation for heat retention
- Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
- Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings

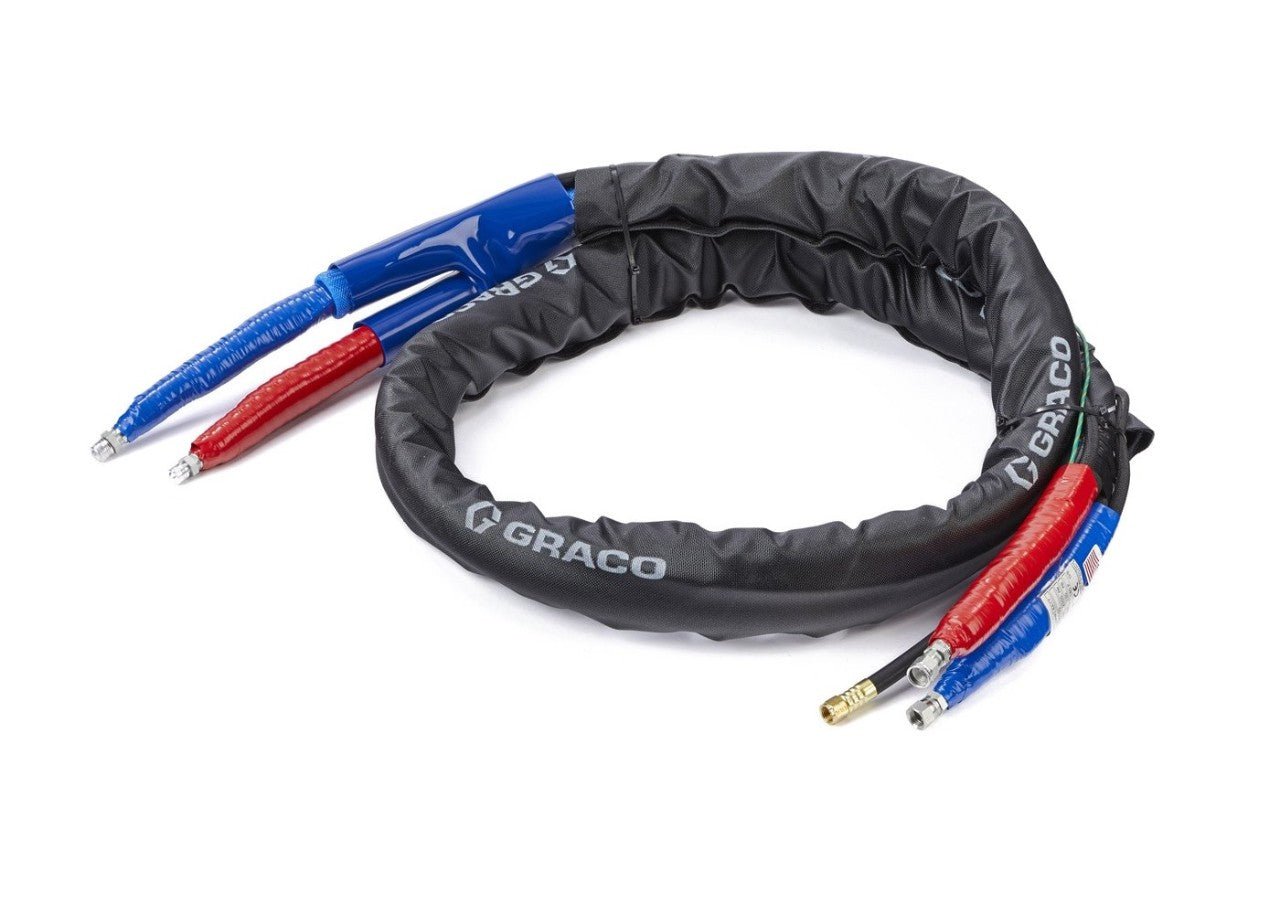

- Helix-design whip hose uses braided copper wires for added flexibility and longer life
