The Worlds Most Advanced Spray Foam And Polyurea System

Graco Reactor 3 System

September 1 to December 1, 2024

Reactor 3 Trade-In/Trade-Up promotion

We are currently offering a special Reactor 3 Trade-In/Trade-Up promotion from September 1 to December 1, 2024. Trade in your old functioning spray foam or polyurea equipment and enjoy substantial discounts:

  • 10% off R3 Standard or Pro packages
  • 12.5% off R3 Elite packages
  • 15% off R3 Elite packages with Core transfer pumps

Katalyst Control For Reactor 3

Helps Eliminate The Largest Causes Of Off-Ratio Issues

Katalyst, the new Reactor 3 software, provides the highest level system intelligence to optimize spray, eliminate ratio issues, improve yield, to help deliver quality results every time.

Automatically shuts system down when material has run out so air does not enter into the fluid systemAutomatically adjusts power to the pumps to always provide optimal material feed to the Reactor, such as helping to eliminate issues related to cold materials

The Only Fully-Connected System From Drum To Gun

Reactor 3 Elite model with Core E1 Transfer Pumps are necessary to activate Katalyst System Intelligence. Standard and Pro models can upgrade hardware to activate Katalyst System Intelligence.

Features of Reactor 3

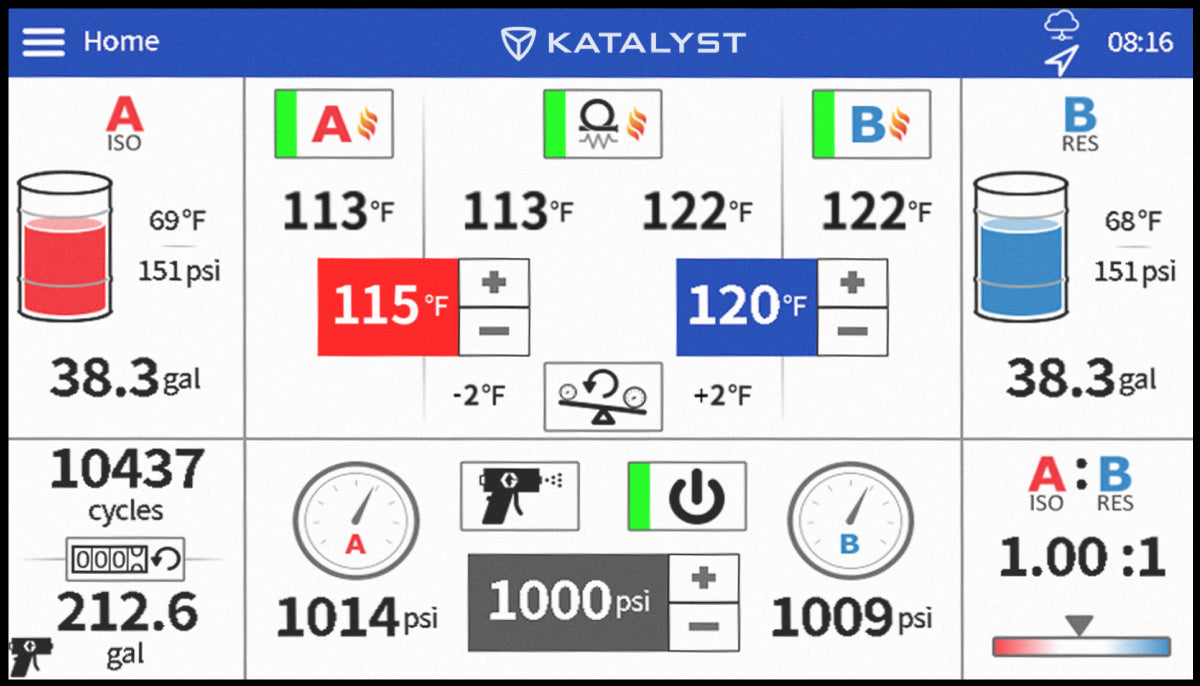

ADM_SCREEN

New Touchscreen Control

Easier To Control and Access Information

The new larger interface provides simple touchscreen operations and makes the Reactor easy to operate. All the necessary spray information and control is on one screen, making it intuitive and easy to understand. New setup menus offer more controls than ever for owners and managers to optimize the machine for their business needs.

Picture shown represents an Elite model.

Reactor Connect

Remote Monitoring Is Always Within Reach

Reactor Connect is designed for both Sprayers and Owners/Managers alike. Use Reactor Connect to track ratios, receive alerts and view data directly from your smartphone. As a result, owners/managers can monitor rigs, access reports, troubleshoot issues from anywhere and get the crew back to work quickly.

Reactor Connect App Features

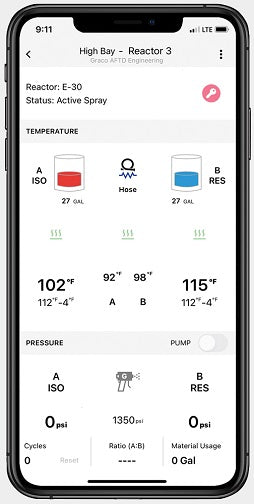

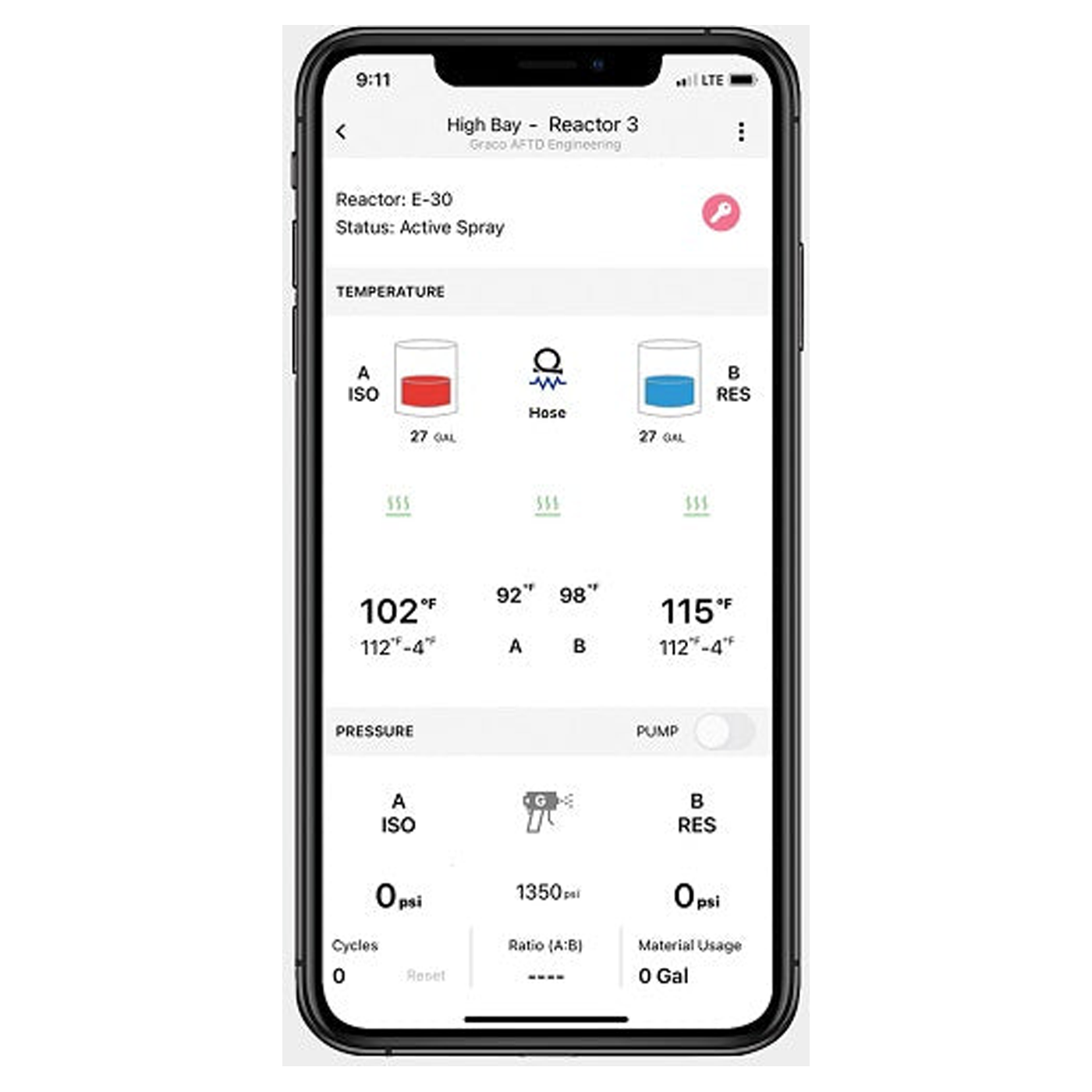

REACTOR CONNECT SCREEN

Adjust temperature and pressure pointsView drum levelsTurn heat zones on/offView and reset cycle counter/material usageTurn system on/offTurn pump on/offToggle between Spray, Park and Jog modesView ratio

MULTI-SYSTEM DASHBOARD

Current Reactor statusDaily "power on" timeDaily "spray" timeDaily material usage

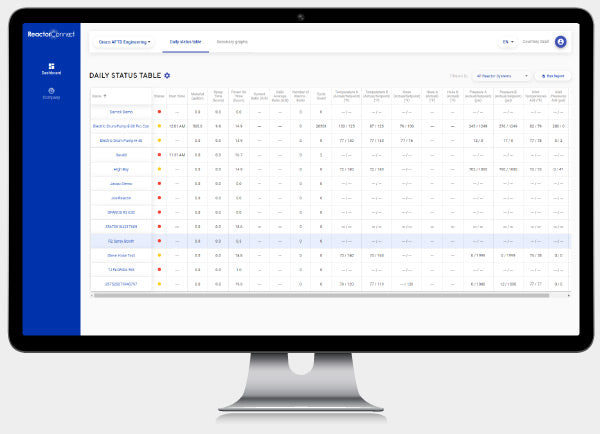

REACTOR-CONNECT-DESKTOP

Reactor Connect Website Features

ONLINE INTERFACE

Create user accounts, company profiles and usersAssign Reactors to your accountsAdvanced Reactor analyticsControl accessGPS location mapsAutomated summary reportsCustomized reporting

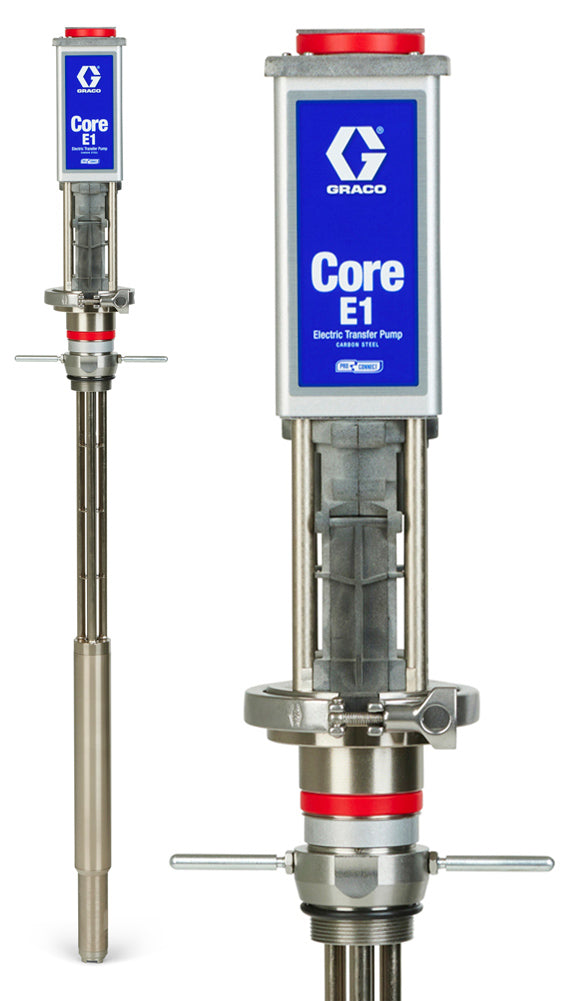

Core E1 Electric Transfer Pumps Powerful, Quiet, Smart

Get in the flow with Graco's revolutionary NEW Core electric transfer pumps; designed to optimize material supply and minimize downtime. Quieter and less expensive to operate than traditional pneumatic pumps, the new electric pumps can communicate with the Reactor 3 to give you a fully-connected system

CORE-E1

CORE

NEW SUPPLY PUMP SHUTDOWN

Senses when a drum is empty and automatically shuts down the transfer pumps and Reactor 3 proportioner before damage occurs, including air entering the system and that can compromise ratio.

NEW SMART SUPPLY

The software automatically monitors and adjusts Reactor 3 proportioner inlet pressures to optimize material feed and on-ratio performance. Maintains inlet pressure between 80-200 psi — boosting power to the transfer pump’s electric motors when needed. Achieve Smart Supply when using Core E1 pumps with a Reactor 3 Elite model.

6X QUIETER

The Core E1 Pump is up to 6X quieter than pneumatic pumps. That’s equivalent to reducing the sound in your rig from being as loud as a motorcycle to that of a car.

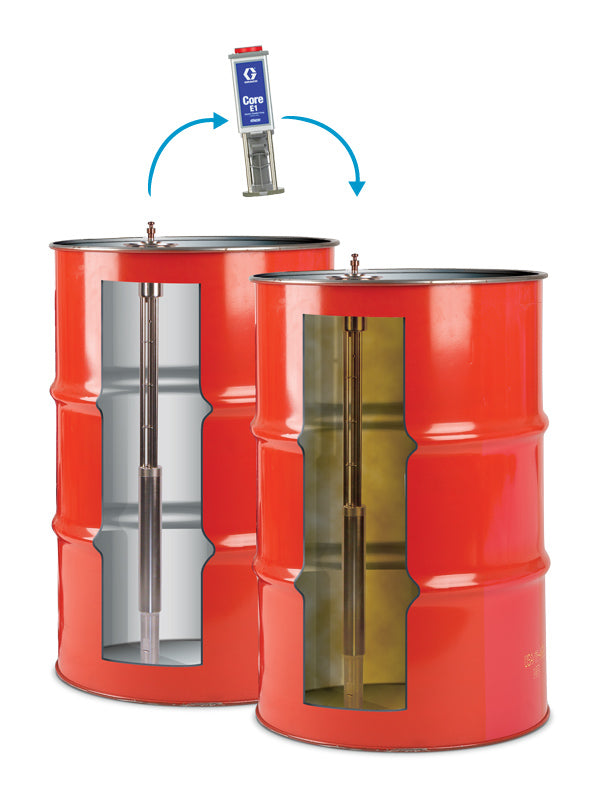

CORE-E1-IN BARREL

pro connect

With our exclusive ProConnect technology, you can quickly disconnect the motor from the pump lower and easily transfer the pump from drum to drum…even in low ceiling height rigs. Paying for taller rigs or having to tip the drum to remove the pump is no longer necessary. ProConnect is available on both the E1 and T4 pumps.

TIP: Have an extra pump lower installed on your rig to make changing drums even faster and cleaner.

Connections Made Easy

Connecting your motor to the lower just got as easy as 1,2,3

Step 1: Loosen T-handle

Step 2: Open Pump Clamp

Step 3: Slide Electric Motor to Remove

XCELERATOR HEATED HOSES

Faster to Heat, Lighter Weight, Improved Flexibility

Graco’s new Xcelerator heated hoses provide more options and control than ever. All Xcelerator hoses are designed to provide full independent A and B temperature control. This provides more precise pressure balancing and improved material yield. New robust construction provides longer life and reduced maintenance.

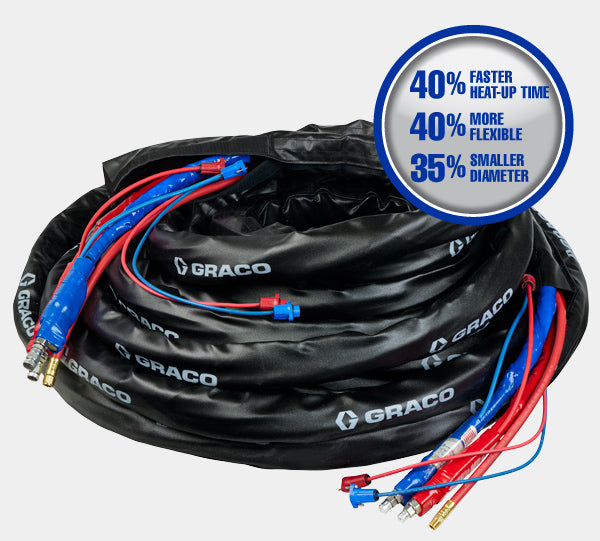

HEAT-100FT-HOSE

Xcelerator

Fully-independent A and B temperature controlInternally and externally heated optionsInternal Heated Hoses are available in both 50 ft and 100 ft lengths:Minimizes fluid and electrical connectionsOptimized for Resistance Control Mode:Reduces maintenance and issues with no cables or sensors required

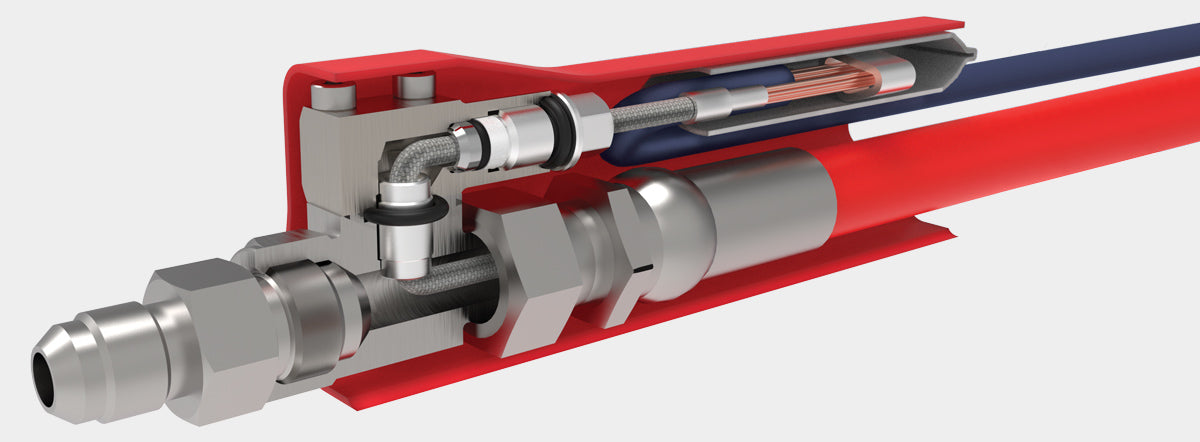

heated hose internal cutout

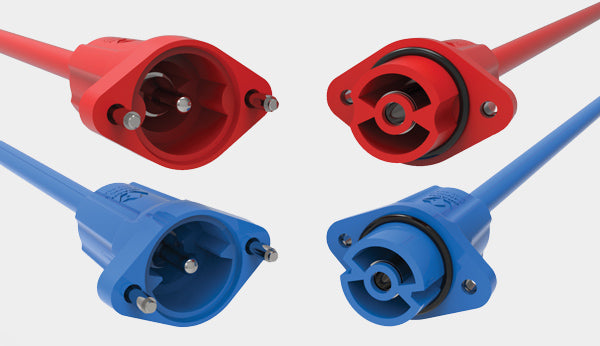

New Internally Heated Hose

Smallest, Lightest Weight Connections in the Industry

The robust, compact design allows the heating element to enter/exit the fluid stream at each hose joint without adding significant size or weight.

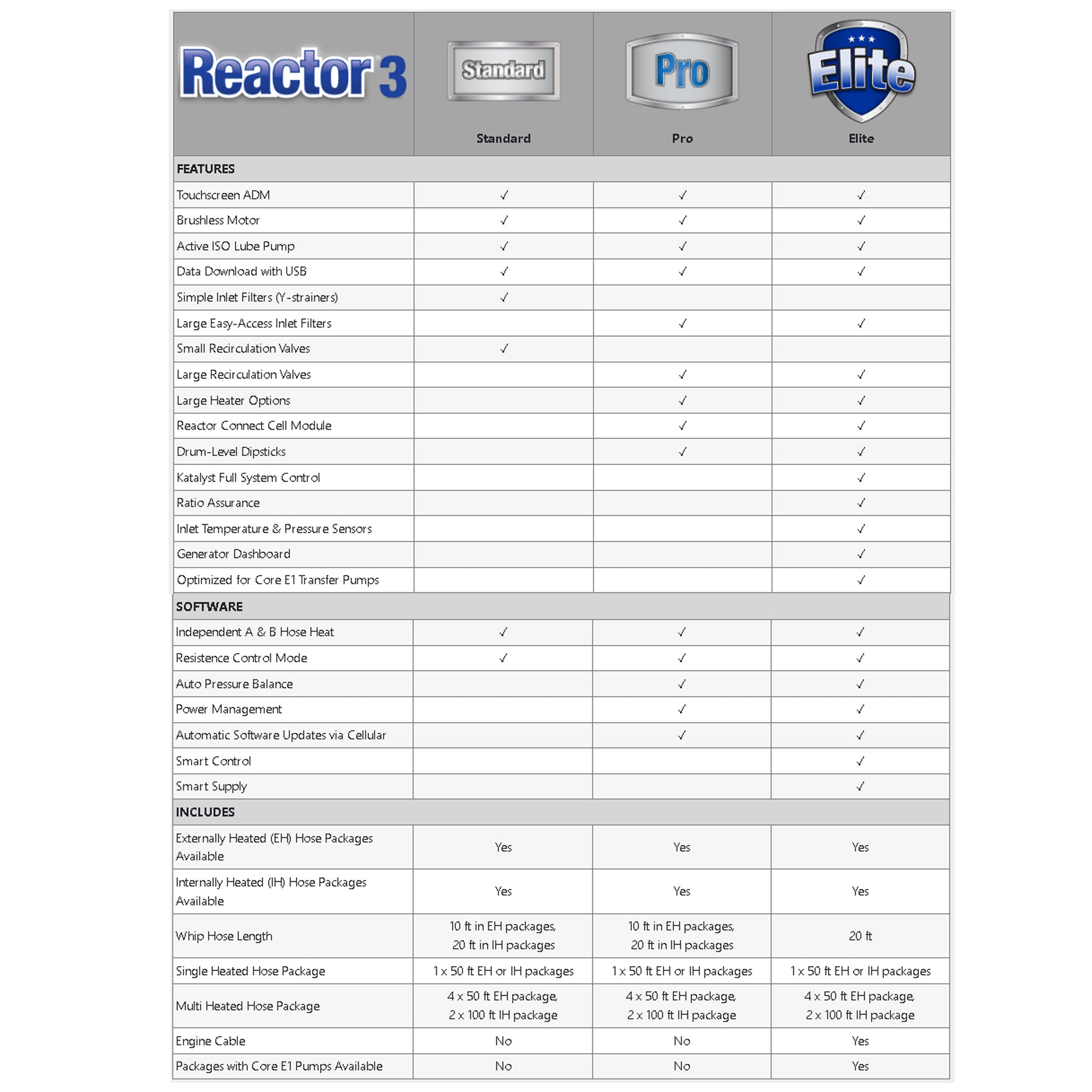

Which System is Right for you?

Choose the Reactor Model That Best Fits You

Request a Quote
